Adding a Asset "All-In-One" Access Panel for Device Details Dashboard
Adding quick access buttons to device details dashboard
-This set of scripts runs against all devices in a groups you define that you wish for them to appear. There is also a dynamic context to it where as additional button(s) could appear for devices meeting a certain criteria, in this case being in a device group.
!--Use at your own risk! It works great for me, but each environment is different so please validate in test environment. Also, I am new to perl and I am sure there are better ways to handle this script and I am sure there are some errors in the code I missed while sanitizing it so again, please test and validate first--!

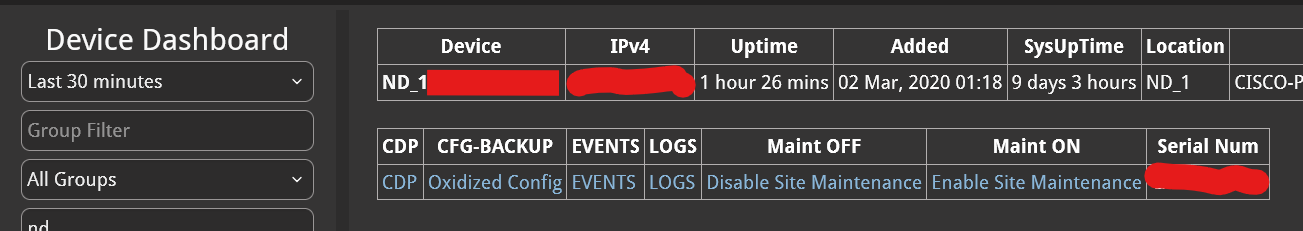

Use Case: Needed a way to place an entire sites devices in/out of maintenance mode quickly. Also, the environment I am in has other tools for network management as well as just wanting quick access buttons for other useful AKIPs Reports/Tools relevant to the device details being viewed and accessing them all separately was painful. The need for having all tools accessible on a single screen was needed so I created this script to place a new row of buttons on device details dashboard giving quick access links to the currently viewed devices's…
(Internal AKIPs Links filtered for device)
-CDP Neighbors
-Events related to device for last8h
-Syslog messages from device for last2h
-Device Serial Number (string, not a link)
External Tools (These are specific to my specific use case and example only)
-Backups of device config
Dynamic Links (when devices are in specific groups)
-"WAN" Group: Link to data circuit management database filtered for site's circuits (filter is using fist 2 characters of device's hostname which represents site code)
-"Site-Core-Devices" Group: If a device was a site's core, links titled "Site Wide Maintenance Mode-Enable/Disable" would appear that when clicked would execute site scripts putting all devices with the same first 2 characters in device name which represents a site code, into or out of maintenance mode.
################# BEGIN AIO PANEL ################################
#
############ BEGIN PROD ADD AIO PANEL ASSET+RESOURCE #############
# -----------------------------------------------------------------------------
# config_asset_all_in_one
# Collapse "resources" into the single 'asset' child so links show in header.
# asset:
# - Oxidized URL for device's config backup
# - CDP Neighbor AKIPs report link
# - Device specific related Events (last 8 hours) AKIPs Tool link
# - Conditional group links
# - Serial_Num (ENTITY-MIB)
# - Syslog AKIPs viewer link
# - Site wide enable/disable maintenance mode links for core devices
# -----------------------------------------------------------------------------
sub config_asset_all_in_one {
# ====================== SETTINGS ===========================================
# Oxidized
my $OXI_BASE = "http://oxidized.net:8888/node/show/";
my $OXI_BY = "hostname"; # "hostname" or "ip"
use URI::Escape qw(uri_escape);
# AKiPS report links
my $ADD_CDP = 1;
my $ADD_EVENTS = 1;
my $ADD_LOGS = 1;
# Visual section headers
my $ADD_HEADERS = 1;
# Replace existing 'asset' content each run (scoped to device)
my $DO_DELETE_ASSET = 1;
my $is_site_core = 0;
# --------- FILTERS ---------------------------------------------------------
# Exact device allowlist. If non-empty, only these are processed.
my @DEVICES = (); # e.g., ("")
# Limit to these AKiPS Groups (exact names). Empty => all devices with IPv4.
my @GROUPS = ("Cisco", "Aruba"); # e.g., ("Wireless","Cisco")
my @WAN_GROUPS = ("WAN_Aggregation", "Wan_Interfaces"");
# Conditional links by Group membership (label/url per group)
my %GROUP_LINKS = (
"Tool-Test-Devices" => [
{ label => "My custom tool 1", url => "https://wirelessTool.com/" },
{ label => "My custom tool 2", url => "https://otherTool.com" },
# Add more tools here…
],
"WAN" => [ { label=>"Circuit Portal", url=>"https://carrier.portal/" } ],
);
# ==========================================================================
my (@dev_lines, %seen);
# ---- Build candidate list -------------------------------------------------
if (@DEVICES) {
for my $d (@DEVICES) {
my @lines = adb_result(sprintf("mget * %s sys ip4addr", $d));
push @dev_lines, @lines;
}
} elsif (@GROUPS) {
for my $g (@GROUPS) {
my @lines = adb_result(sprintf("mget * * sys ip4addr any group %s", $g));
for my $ln (@lines) {
my @a = split(" ", $ln, 5);
my $dev = $a[0];
next if $seen{$dev}++;
push @dev_lines, $ln;
}
}
} else {
@dev_lines = adb_result("mget * * sys ip4addr");
}
# ---- Process each device in the above listed groups--------------------------------------------------
for my $line (@dev_lines) {
my @arr = split(" ", $line, 5);
my $dev = $arr[0];
my $ip = $arr[4] || "";
# Reset/ensure single 'asset' child
if ($DO_DELETE_ASSET) {
adb_send(sprintf("mdelete * %s asset", $dev));
}
adb_send(sprintf("add child %s asset", $dev));
# === Group check: Build group map + core flag ===
# === Get groups for this device ===
my %group_map;
my @device_groups = adb_result("list device group $dev");
foreach my $group (@device_groups) {
$group_map{$group} = 1;
}
# Check if device is a site core
my $is_site_core = exists $group_map{"Site-Core-Devices"};
# ----- Section: Site Maintenance Mode Toggle Links -----------------------------------------
# ==== Here we define the URL of your AKIPs node and API password for user "api-rw" to call our site-scripts to toggle maint mode ====
if ($is_site_core) {
my $api_password = "myAPIpassword";
my $server = "akips-test.net"; # or your actual AKiPS server FQDN
# ==== Here we build and call the URLs to trigger the site scripts for main mode toggling using site_code we collect here ====
my $site_code = substr($dev, 0, 2); # e.g., "AB"
my $on_url = "/api-script?password=$api_password;function=web_aio_toggle_site_maint_mode;toggle=ON;site=$site_code";
my $off_url = "/api-script?password=$api_password;function=web_aio_toggle_site_maint_mode;toggle=OFF;site=$site_code";
adb_send(sprintf(
"add text %s asset Maint_ON = \"<a href='%s' target='_blank'>Enable Site Maintenance</a>\"",
$dev, $on_url
));
adb_send(sprintf(
"add text %s asset Maint_OFF = \"<a href='%s' target='_blank'>Disable Site Maintenance</a>\"",
$dev, $off_url
));
# === EXAMPLE USE CASE SHOWING DYNAMIC BUTTON LOGIC--- if in group "WAN" device CRM Link logic ===
for my $wan_group (@WAN_GROUPS) {
if ($group_map{$wan_group}) {
my $loc = substr($dev, 0, 2);
my $crm_url = "http://suitecrm.net/#/contracts/index"
. "?return_module=AOS_Contracts"
. "&return_action=DetailView"
. "&query=true"
. "&fp_event_locations_aos_contracts_1_name=$loc";
adb_send(sprintf("add text %s asset WAN_CRM = \"<a href='%s' target='_blank'>CRM</a>\"", $dev, $crm_url));
last;
}
}
}
# ----- Section: Access & Reports -----------------------------------------
# Oxidized Config Backups Version Control link
my $node_key = ($OXI_BY eq "ip") ? (($ip ne "") ? $ip : $dev) : $dev;
my $oxi_url = $OXI_BASE . $node_key;
adb_send(sprintf(
"add text %s asset CFG-BACKUP = \"<a href='%s' target='_blank'>Oxidized Config</a>\"",
$dev, $oxi_url
));
# CDP/EVENTS report links
if ($ADD_CDP) {
adb_send(sprintf(
"add text %s asset CDP = \"<a href='/device-reporter?report=cisco.cdp;mode=report;controls=device;time=last30m;limit=100;group_regex=;device_group=;device_list=%s' target='_blank'>CDP</a>\"",
$dev, $dev
));
}
if ($ADD_EVENTS) {
adb_send(sprintf(
"add text %s asset EVENTS = \"<a href='/event-reporter?mode=table graph;time=last8h;limit=100;device_group=;device_list=%s' target='_blank'>EVENTS</a>\"",
$dev, $dev
));
}
if ($ADD_LOGS) {
adb_send(sprintf(
"add text %s asset EVENTS = \"<a href='/msg-reporter?mode=table%20graph;type=syslog;time=last2h;save_rules=on;limit=1000;af=%s;' target='_blank'>EVENTS</a>\"",
$dev, $dev
));
}
# ----- Section: Inventory -------------------------------------------------
# Serial Number (ENTITY-MIB)
my $serial = "missing";
my @ser_lines = adb_result(sprintf("mget * %s * serial", $dev));
for my $sline (@ser_lines) {
my @sarr = split(" ", $sline, 5);
my $val = $sarr[4] || "";
if ($val ne "") { $serial = $val; last; }
}
adb_send(sprintf("add text %s asset Serial_Num = \"%s\"", $dev, $serial));
}
adb_flush();
}
# sanitize label -> attribute key
sub _safe_key {
my ($s) = @_;
$s =~ s/[^A-Za-z0-9_]+/_/g;
return $s;
}
############ END PROD ADD AIO PANEL ASSET+RESOURCE #############
#
####### BEGIN AIO PANEL TOGGLE SITE MAINT MODE FEATURE #########
# This script is a component of the above AIO panel-Do not use
# independantly!
sub web_aio_toggle_site_maint_mode {
use strict;
use warnings;
my $ERR_INFO = 1;
my $ERR_WARN = 2;
my $ERR_ERROR = 3;
my $ERR_FATAL = 4;
my $type = "device";
my $maint_group = "maintenance_mode";
# === Decode URL parameters ===
cgi_decode();
# === Get parameters ===
my $toggle_maint_mode = cgi_param("toggle") || "";
my $site_code = cgi_param("site") || "";
$toggle_maint_mode = uc($toggle_maint_mode);
$site_code = uc($site_code);
unless ($toggle_maint_mode eq "ON" || $toggle_maint_mode eq "OFF") {
errlog($ERR_WARN, "Invalid toggle value: '$toggle_maint_mode'");
return;
}
unless ($site_code =~ /^[A-Z0-9]{2}$/) {
errlog($ERR_WARN, "Invalid or missing site code: '$site_code'");
return;
}
errlog($ERR_INFO, "Toggling maintenance mode '$toggle_maint_mode' for site code: $site_code");
# === Get all devices and match by site prefix ===
my @lines = adb_result("mget * * sys ip4addr");
my @site_devices;
foreach my $line (@lines) {
my @parts = split(" ", $line);
my $dev = $parts[0] || next;
if (substr($dev, 0, 2) eq $site_code) {
push @site_devices, $dev;
}
}
group_manual_load_cfg();
if ($toggle_maint_mode eq "ON") {
foreach my $dev (@site_devices) {
errlog($ERR_INFO, "Putting $dev into maintenance mode");
group_manual_assign($type, $dev, $maint_group);
}
} elsif ($toggle_maint_mode eq "OFF") {
foreach my $dev (@site_devices) {
errlog($ERR_INFO, "Removing $dev from maintenance mode");
group_manual_clear($type, $dev, $maint_group);
}
}
group_manual_save_cfg();
adb_flush();
}
####### END AIO PANEL TOGGLE SITE MAINT MODE FEATURE #########
#################### END AIO PANEL ##########################
